Kontax

KS90 Stirling Engine Blue - Kit

$199.00

Colour:
Blue

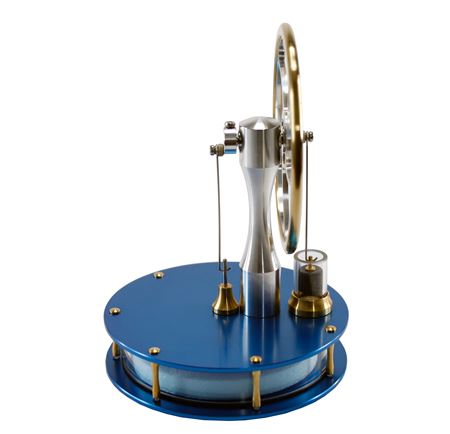

KONTAX KS90 BLUE STIRLING ENGINE

  • Plates made from anodised blue aluminium
  • Ultra Low temperature difference Stirling Engine
  • Can run from the heat of your hand
  • Runs on heat sources such as set top box, cup of coffee
  • Will even run on ice
  • Runs on surprisingly little temperature difference



LOW FRICTION BALANCED MICRON PRECISION
  • EXTREMELY LOW FRICTION GRAPHITE PISTON
  • INGENIOUS SELF-LUBRICATING PISTON
  • PROVEN GLASS/GRAPHITE COMBINATION
  • PRECISION CLEAR BOROSILICATE GLASS
  • ULTRA LOW FRICTION THROUGHOUT
  • FULLY MACHINED BRASS + ALUMINIUM WHEEL
  • INTEGRAL FLYWHEEL BALANCING
  • RUNS ON A WARM HAND OR HOT WATER
  • RUNS BACKWARDS WHEN PLACED ON ICE
  • KONTAX GUARANTEED TO RUN
  • ULTRA LOW TEMPERATURE DIFFERENCE ENGINE
  • BEST PERFORMING LTD ENGINE
    ON THE MARKET
THERMODYNAMICS DESIGN PERFORMANCE
  • SUPER-FLAT OPTIMISED CHAMBER
  • ALL DIMENSIONS CALCULATED
    FOR OPTIMUM PERFORMANCE
  • HOLLOW BRASS PILLARS, PROVIDING
    SURPRISING HIGH THERMAL INSULATION
  • REGENERATING DISPLACER PISTON
  • PROVEN LONG LASTING DESIGN
  • ELEGANT NO COMPROMISE DESIGN
  • BRITISH DESIGNED AND MADE
    (KS90 POLISHED SHOWN IN IMAGE ABOVE)
  • NO SCREWS PROTRUDING FROM PLATES
  • MICRONS ACCURACY POWER PISTON
  • NO SQUEAKING, QUIET DESIGN
  • AIR SEALED DESIGN
  • MINIATURE BALL RACE BEARINGS
  • PRECISION STAINLESS STEEL DISPLACER ROD




THE SIMPLE STIRLING ENGINE CONCEPT

What is a Stirling Engine?

Stirling engines convert a small temperature difference into motion. As long as one plate is warmer (about 5°c) than the other then the engine will run. It doesn't matter which plate is warmer, as long as the other is cooler. If you reverse the temperature differential, and cool the plate that was warm, and warm the plate that was cool then the engine will run in reverse. The Stirling engine is named after its inventor, Rev. Robert Stirling, who patented his idea in 1816.

How do they work?

Stirling engines work by cyclically heating and cooling the air inside the main chamber. As the air heats up it expands, and as it cools down it contracts. This expansion and contraction drives a small piston which in turn drives the flywheel. The clever thing about Stirling engines is that the mechanism for cycling the heating and cooling of the air is built into the engine in the form of the displacer, which is driven by the flywheel and moves the air from the warm side to the cool side and back again over and over.

Eco-friendly

The Kontax KS90 Low Temperature Differential Stirling Engine is the ultimate eco-friendly device, showing with one spin of the flywheel a clean and simple way of converting waste heat into motion. Because these engines rely on a temperature difference for operation, they will run on almost any source of warmth. Typical heat sources include hot coffee or tea, warm sunlight, CRT monitor, TV digibox and the human hand.

Efficiency

Because Stirling engines have a theoretical 40% greater efficiency than photo-voltaic (PV) panels worldwide energy companies are investigating using them as a way to provide energy in a more sustainable and environmentally friendly way. Such companies use our full range of low temperature engines to demonstrate the principles behind generating electricity using Stirling engines.




PROVIDED AS A KIT

Kontax kits are supplied in a custom foam insert which Kontax have designed and made themselves. This ensures that all the parts are safe and secure while in transit. It also doubles as an assembly aid, holding the engine still during assembly.

Instructions

Instructions for all Kontax engines are available online in the form of a PDF. Click here if you would see the manuals now. All the instructions provide a detailed step by step process. Most instructions have over 50 high quality images showing the complete assembly process along with full parts list and detailed written instructions. Assembly should take no more than 30 minutes. All you need to supply is a small Pozidriv screwdriver (cross head) and small flat head screwdriver.

Stirling engine kit

(KS90 solar kit shown)
